Howard J. Thompson's

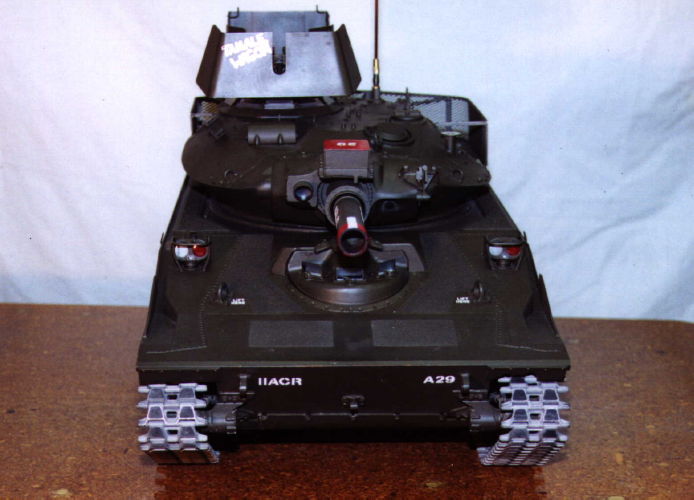

1/8 scale Sheridan tank

Click pictures for a larger view.


Photo 1001

Photo 1002

Photo 1003

The above pictures taken at Ft. Irwin, CA on January 21, 2002 while visiting the Museum Curator Neil Morrison.



Photo 1004


Photo 1005


Photo 1006

Photos of the original 'ARIZONA' in 1970 Vietnam. Plt Sgt Ramon B. Vega, 2nd Platoon, A Troop, 11th ACR was the TC of the 'ARIZONA'.



Photo 1007


Photo 1008

Hull under construction. Fabricated from 1/8th and 3/16th 5 ply aircraft grade birch plywood. Fiberglass and aluminum sheet was used to reinforce all critical points.



Photo 1009


Photo 1010

Turret under construction. Fabricated by laminating 1/64th mahogany plywood and 1/32nd thick aircraft grade birch plywood over a skeleton of 22 shaped bulkheads of 1/8th birch plywood emanating as 15 degrees from the center.



Photo 1011

Hull assembly with all suspension components in place. Torsion bars, shocks and idle wheel adjusters are fully functional. Roadwheels are supported by two ball bearings each. All parts other than the hull are machined from aluminum or steel.


Photo 1012

Early hull and turret assembly in process. Gun barrel is machined from aluminum as is most other parts on the turret and hull. Brass is used for some parts to facilitate soldering hinges etc.



Photo 1013

The bussel rack was fabricated from brass channels and angles and steel security screen. These large bussel racks were fabrictaed 'in country' to provide the troopers with much greater storage capacity.


Photo 1014

The .50 cal cradle was machined from aluminum. This photo gives some idea of the size differential between full size and 1/8th size. That is a 6 inch scale in the foreground.



Photo 1015

The .50 cal armor shield was part of a M113 ACAV Armor Kit and was adapted 'in country' to provide some frontal protection for the Sheridan TC.


Photo 1016

The rear deck is yet to be completed. The battery cover houses the switch for the hull receiver. The air cleaner cover houses the switch and charging jacks for the main batteries.



Photo 1017

Right side of turret showing cupola with the side and back armor. The ACAV front shield sat more vertical on the Sheridan than on the M113.


Photo 1018

Left side of the turret with loader's hatch open. In the hatch opening is the switch for the turret receiver.



Photo 1019

The front hull deck is incomplete as the flotation surfboard is not in place nor are any of the flotation barrier covers in place around the top of the hull.


Photo 1020

The operable flotation barrier step and the fire extinquisher exterior actuating handle can be seen in this left frontal shot.



Photo 1021

All parts of the driver's hatch are machined from aluminum. The hatch rotates on ball bearings at the top.


Photo 1022

Eventually there will be a driver in position. Probably a TC up in the cupola as well.



Photo 1023

The model is nearing completion, however, it will probably be the winter of 03/04 before this happens. The model was started in September 1997. Nearly 4000 hours have been expended along with many thousands of dollars for components and materials.


Photo 1024

The 204 track shoes are investment cast from steel and then the track pin holes reamed. Brass pins are used. The idlers and sprocket drive axles are supported by ball bearings.



Photo 1025

The dual range drive module operates on 24 volts provided by two 7 amp hour sealed lead-acid batteries. Steering, forward/reverse and throttle are provided by a Vantec electronic controller. Shifting between ranges is by a standard servo. The final drives are two .25 roller chain.


Photo 1026

A 12 volt gear motor rotates the turret using a .25 ladder chain. The driven sprocket is fastened to the lower thrust plate that sandwiches the hull flange to capture the turret.



Photo 1027

The gun elevation is provided by a standard servo and a slotted lever. The turret has its own receiver and battery pack. Later a cupola drive and sound cards may be added.


The model is 31 inches long, 13 3/4 wide and 14 1/2 high over the .50 cal. It weighs 65 pounds. It travels at .65 mph max in Lo Range, which is equivalent to about 5 mph in the full size M551. It travels at 2.5 mph max in Hi Range, which is equivalent to about 20 mph in the full size. Although the full size had a max speed of 43 mph it would be very difficult to control the model when running at that equivalent scale speed. The model will operate for about 2 1/2 hours in Lo Range and about 1 3/4 hours in Hi Range before requiring battery recharging. It will climb a 60% grade in both Lo and Hi range. There is a receiver and antenna inside the hull, which controls the Vantec, the turret drive motor and shifting of the drive module. With a separate receiver and battery pack in the turret, sliprings between the hull and turret are not required.
