Kilian's Robot Shop of Horrors - 02/01/2002
![]() Dennis Dierks gave us these microwave door openers. |
![]() The big ones had quite a bit of electronics. |
![]() Side view of the big microwave horn. |

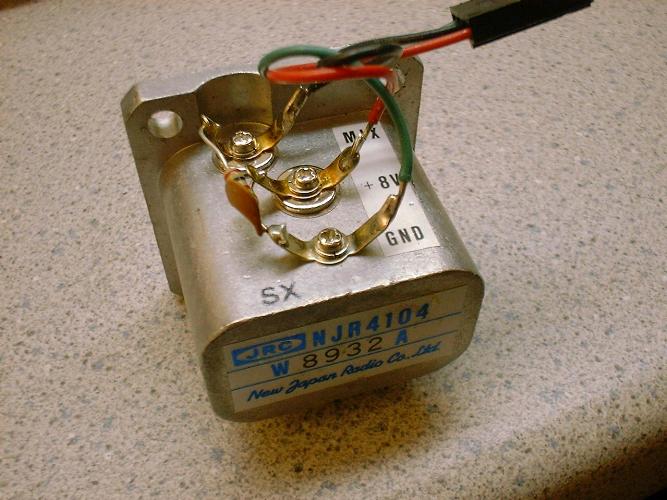

![]() One of the small microwave horns. |
![]() Looking down the business end at the microwave diode. |
![]() Checking the range. |
![]() Adjusting the sensitivity. |
![]() Dennis also had these infrared transmitters and receivers. |
![]() Alan is checking the specs so we can look up the encoder connections. |
![]() The beginnings of a schematic for the PIC-SERVOS. |
![]() Three panelized PIC_SERVO boards. |

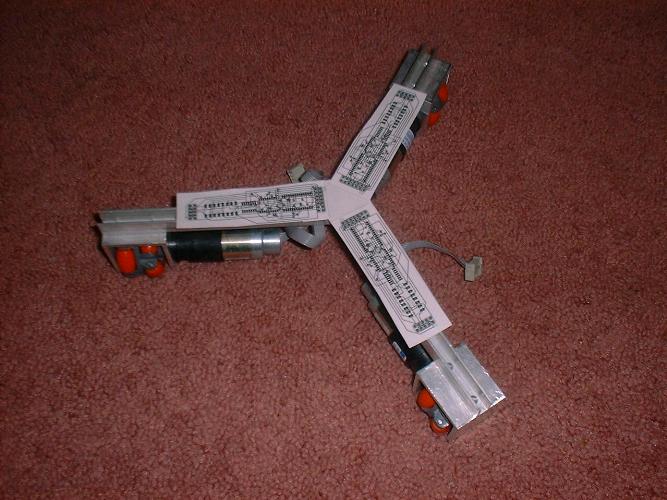

![]() Test fitting of the boards on Trippy. |
